We are professional 18M Articulated Work Platform Self Propelled Boom Lift supplier and factory in China. We can produce articulating boom lift according to your requirements.

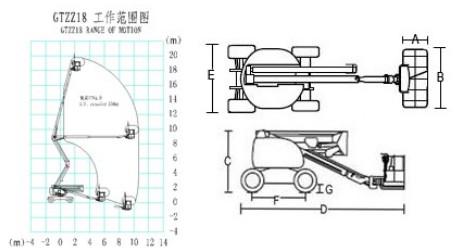

18M Articulated Work Platform Self Propelled Boom Lift Measurements Specifications
|
MODEL |
GTZZ 18 |
||
|
MEASUREMENTS |
Metric |
US |
|
|
Working height maximum * |
19.7m |
64ft7in |
|
|
Platform height maximum |
18 m |
50ft5in |
|
|
Horizontal reach maximum ** |
12.17m |
39ft7in |
|
|
A |
Platform length-8ftmodel |
0.76m |
2ft6in |
|
B |
Platform width-8ftmodel |
1.83m |
6ft |
|
C |
Height-stowed |
2.38m |
7ft9in |
|
D |
Length-stowed |
8.05m |
26ft5in |
|
E |
Width |
2.44m |
8ft |
|
F |
Wheelbase |
2.60m |
8ft6in |
|
G |
Ground clearance-center |
0.43m |
1ft5in |
|
PRODUCTIVITY |
|||
|
Lift capacity (restricted) |
230kg |
507lb |
|
|
Platform rotation |
180° |
||
|
Turntable Swing |
360°continuousss 355°non-continuou |
||
|
Turntable tail swing |
0 |
||
|
Drive speed -stowed |
6.3km/h |
||
|
Gradeability -stowed (2WD) |
30% |
||
|
Gradeability -stowed (4WD) |
45% |
||
|
Turning radius -inside |
3 m |
9ft10in |
|
|
Turning radius –outside Turning radius - axle extended outside |
5.2m |
17ft |
|
|
Controls |
12V DC Proportional |
||
|
POWER |
|||
|
Power source |
Cummins B3.3-C60(45kw) |
||
|
Auxiliary power unit |
12V DC |
||
|
Hydraulic tank capacity |
140L |
||
|
Fuel tank capacity |
100L |
||
|
WEIGHT |
|||
|
2WD |
8200kg |
18077lbs |
|
|
STANDARDS COMPLIANCE EN280、JG/T5101、Q/ADZV001-2008 |
|||
